TRIDONIC LED driver LC 44W 1,050mA fixC SR ADV2
Manufacturer
- Brand:
- TRIDONIC
- Item no.:
- 9053011
Colour & design
- Color:
- white
- Material:
- Polycarbonate

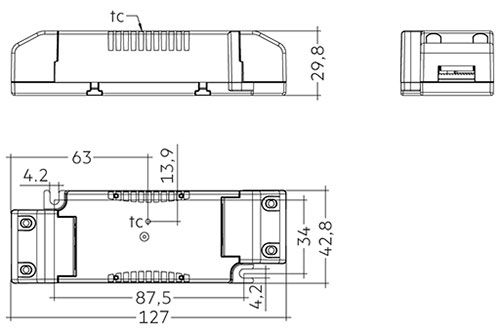

Dimensions
- Length (in cm):
- 12.7
- Width (cm):
- 4.28
- Height (cm):
- 2.98
- Net weight (kg):
- 0.115
Light source
- Light bulb included:
- No
- Integrated LEDs:
- No
Electrical information
- IP code:
- IP20
- Protection class:
- II
- Supply voltage (volts):
- 230
Constant current LED driver LC fixC SR ADV2 IP20 from TRIDONIC for luminaires with M / MM
This independent LED driver with strain relief housing made of white polycarbonate is also suitable for small ceiling cut-outs and low cavities thanks to its compact dimensions. It is particularly suitable for supplying spotlights and downlights in retail and catering applications as well as panel and area lighting in offices.
- For luminaires of protection class II
- for luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711
- for installation in dry environments
- Ambient temperature in operation: - 20 °C to + 40 °C
- Temperature protection according to EN 61347-2-13 C5e
- Plug-in terminals for connection
- two separate strain reliefs for input and output cables with very robust terminals
- protection against overload, open circuit, burst voltages 1.4 kV, surge voltages 1 kV between L and N and surge voltages 2 kV between L/N and ground
