TRIDONIC LED driver LC 14W 250-350mA flexC R ADV2
Manufacturer
- Brand:
- TRIDONIC
- Item no.:
- 9053024
Colour & design
- Color:
- white
- Material:
- Polycarbonate

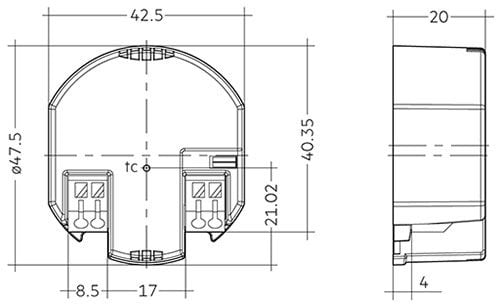

Dimensions
- Length (in cm):
- 4.75
- Width (cm):
- 4.25
- Height (cm):
- 2
- Net weight (kg):
- 0.047
Light source
- Light bulb included:
- No
- Integrated LEDs:
- No
Electrical information
- IP code:
- IP20
- Supply voltage (volts):
- 230
Round constant current LED driver LC flexC R ADV2 IP20 from TRIDONIC for luminaire installation, output current selectable in two steps
This driver allows the two-stage adjustment of the output current according to the requirements of the supplied luminaire. The white polycarbonate housing is particularly space-saving to facilitate installation in luminaires. Typical applications include spotlights, track luminaires and surface mounted luminaires for retail and hospitality.
- For luminaires of protection classes I and II
- for installation in dry environments
- with plug-in terminals for connection
- Ambient temperature during operation: - 20 °C to + 60 °C
- Standards complied with: EN 55015 EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384
- Protection against overload, open circuit, short circuit, overtemperature, burst voltages 1 kV, surge voltages 1 kV between L and N and surge voltages 2 kV between L/N and earth
